JBL Studio 6 88LCR In-Wall Speaker

What Is the JBL Studio 6 88LCR?

The largest Studio 6 in-wall model: dual 8-inch woofers, a compression driver, 96 dB sensitivity and 120 W RMS handling — for dedicated cinemas that need front-channel impact. It belongs to the JBL Studio 6 Architectural range and is supplied as a single unit.

Key Features and What They Mean

Only features published by JBL are listed, with what each means in a real room.

• **Dual 8-inch PolyPlas® woofers** — The most cone area in the Studio 6 architectural range, for scale in larger rooms.
• **Compression driver in an HDI™ waveguide** — A compression driver is a technology JBL carries over from professional cinema and touring sound. It plays loud with low strain, which helps in larger rooms and at reference levels.
• **Treble and bass adjustment** — Built-in high-frequency level and low-frequency boundary compensation let the installer correct for a speaker placed close to a corner or in a bright, hard-surfaced room.
• **Paintable zero-bezel magnetic grille** — The grille can be painted to match the wall so the speaker disappears into the interior finish.

JBL Studio 6 88LCR Specifications

Values from JBL's manufacturer documentation, checked on 10 October 2026. Where JBL's own documents conflict or a figure isn't published, we leave it out instead of guessing. View the JBL source document.

What the Specifications Mean in Practice

How to read these numbers when planning your room.

• **Sensitivity 96 dB** — each 3 dB higher sensitivity means roughly half the amplifier power for the same loudness. This is an efficient speaker that most AV receivers drive comfortably.
• **Nominal impedance 6 ohms** — most current AV receivers are rated for 6-ohm speakers; we confirm the receiver's minimum rated load before pairing.
• **Recommended amplifier power 50–175 W** — this is a range, not a requirement to buy the largest amplifier. Room size and listening level decide what you need.
• **Mounting depth 95 mm** — confirm the wall cavity or false-ceiling plenum is deeper than this, with clearance for cables and brackets.
• No specification guarantees a listening result: room size, furnishings, placement and calibration change what you hear.

Best Use Cases

Applications the Studio 6 88LCR is designed for:

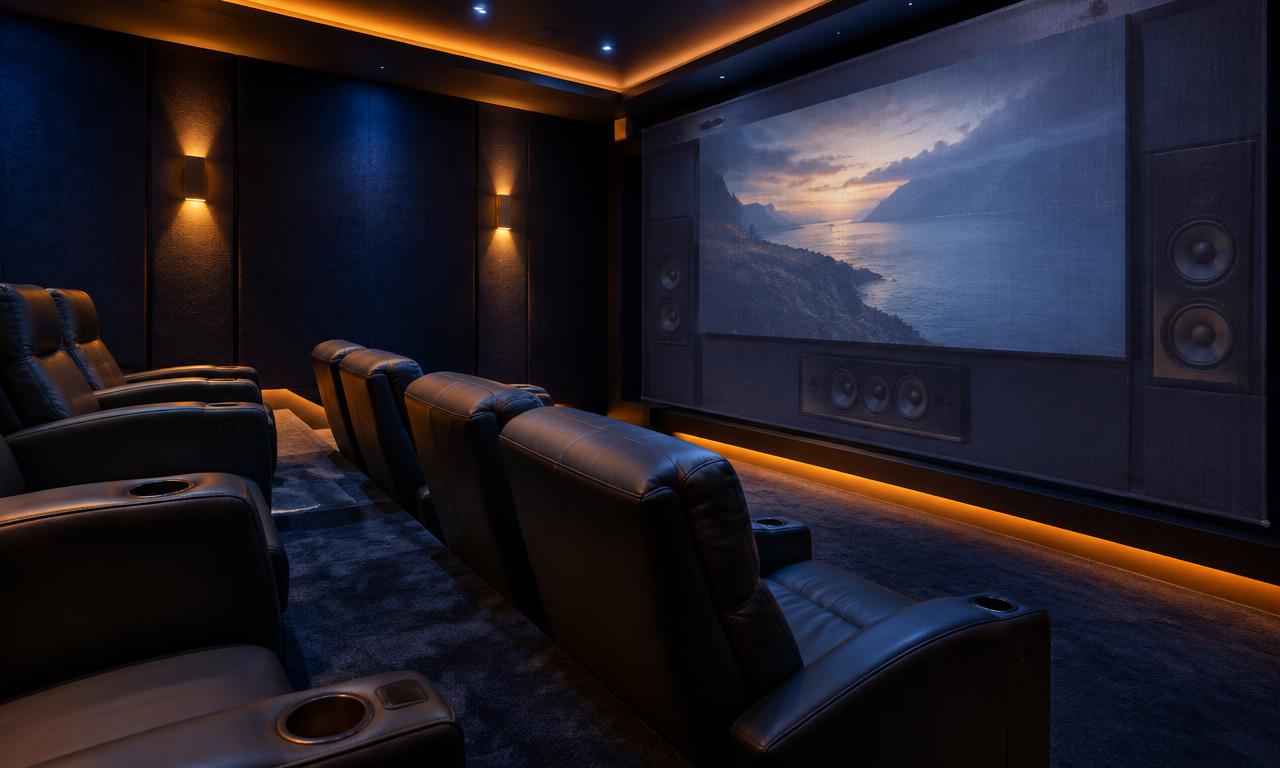

• Front LCR in a dedicated cinema or media room
• Side and rear surrounds flush with the wall
• Architectural installs where boxes are not wanted

Who Should Consider It — and Who May Prefer Another Option

**Consider it if:** Dedicated cinemas and media rooms where front speakers sit in or behind the screen wall. **You may prefer another configuration if:** Rental homes, solid brick walls without a cavity, or finished interiors that cannot be opened may suit box speakers better.

System Matching: AV Receiver, Speakers and Subwoofer

Pair LCRs with matching in-walls for surrounds. Set the receiver's speaker size to 'small' and cross over to a subwoofer.

• JBL Studio 6 Theater — in-wall lcr loudspeaker
• JBL Studio 6 66LCR — in-wall lcr loudspeaker
• JBL Studio 6 8IW — in-wall loudspeaker
• JBL Studio 660P — powered subwoofer
• Choose a matching AV receiver — Denon, Marantz and Onkyo models with full specifications

Installation Guidance

What we check and do when installing this model:

• Wall construction and cavity depth checked against mounting depth
• Cut-out positions fixed before plastering or panelling
• Cable routes planned to the rack
• Back-box or cavity damping where required
• Access for future service

Why Buy the JBL Studio 6 88LCR Through LiveInSmart

LiveInSmart Technologies is an authorised JBL channel partner in Telangana and Andhra Pradesh, and a home-theatre and AV integrator with showrooms and demo rooms in Hyderabad (Ameerpet) and Vijayawada (Ashok Nagar). We help you choose JBL speakers for your room, match them with an AV receiver, then supply, install, calibrate and support the system — with 1000+ installations over the years and a 48-hour after-sales response.

• Help choosing the right model and speaker roles for your room
• Speaker and AV receiver matching
• Supply and delivery coordination
• Professional installation, configuration and testing
• Calibration and subwoofer integration
• Warranty coordination and upgrade advice

After-Sales Support

The team that installs your system supports it: 48-hour response, troubleshooting, recalibration after furniture or speaker changes, manufacturer warranty coordination and service escalation, and replacement or upgrade consultation.

JBL Studio 6 88LCR in Andhra Pradesh & Telangana

As an authorised JBL channel partner in Telangana and Andhra Pradesh, we supply, install and calibrate the JBL Studio 6 88LCR across Andhra Pradesh and Telangana from our Hyderabad and Vijayawada teams — including Tirupati, Kurnool, Nandyal and Kadapa. Our showrooms are only in Hyderabad and Vijayawada; other cities start with a remote review of drawings and photos, followed by delivery and installation visits.
